PSMN102-200Y,115
Manufacturer
Nexperia
Description

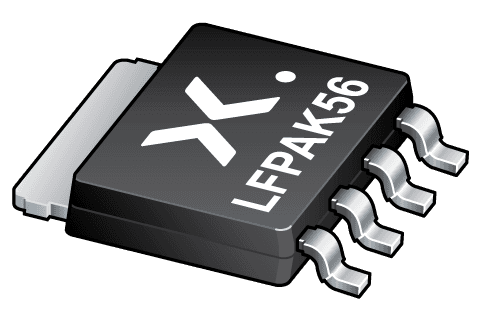

Power MOSFET, N Channel, 200 V, 21.5 A, 102 MilliOhms, SOT-669 (LFPAK), 4 Pins, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Fall Time
Gate to Source Voltage (Vgs)
Input Capacitance
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Description
SOT
Tin
21.5 A
200 V
102 mΩ
200 V
28 ns
20 V
1.568 nF
Lead Free
Production (Last Updated: 6 months ago)
RELEASED FOR SUPPLY (Last Updated: 6 months ago)
200 V
150 °C
113 W
200 V
-55 °C
1
4
4
Tape & Reel
113 W
No
102 mΩ
29.5 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
33 ns
14.2 ns
In Stock
Quantity
MOQ : 1
Per Unit Price
₹172.50
Total Price
₹172.50
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹172.50
₹172.50
10
₹67.76
₹677.57
25
₹67.76
₹1693.93
50
₹67.74
₹3386.96
100
₹60.89
₹6089.24
500
₹50.33
₹25166.14
1000
₹50.05
₹50045.95
