PSMN1R4-40YLDX
Manufacturer
Nexperia
Description

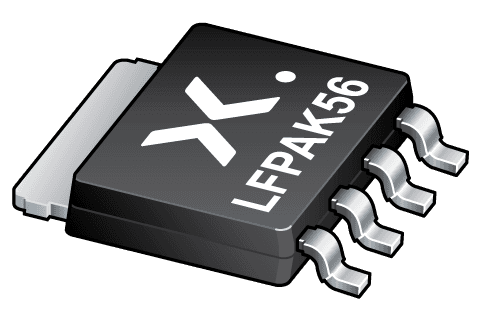

N-channel 40 V, 1.4 m, 240 A logic level MOSFET in LFPAK56 using NextPower-S3 technology
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Input Capacitance
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Terminals
Packaging
Rds On Max
Rise Time
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Description
SOT-669-4
Tin
100 A
40 V
1.85 mΩ
40 V
Single
30 ns
20 V
6.661 nF
Production (Last Updated: 6 months ago)
RELEASED FOR SUPPLY (Last Updated: 6 months ago)
175 °C
238 W
40 V
-55 °C
Surface Mount
1
1
4
Tape & Reel (TR)
1.4 mΩ
49 ns
Compliant
8541290080|8541290080|8541290080|8541290080|8541290080
47 ns
39 ns
In Stock
Quantity
MOQ : 1
Per Unit Price
₹256.98
Total Price
₹256.98
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹256.98
₹256.98
10
₹167.44
₹1674.36
25
₹167.45
₹4186.35
50
₹167.45
₹8372.71
100
₹117.61
₹11760.56
500
₹94.80
₹47399.69
1000
₹93.53
₹93526.95
