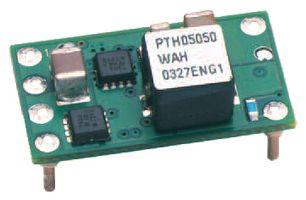

PTH05050WAH
Manufacturer
Texas Instruments
Description
DC/DC Power Supply Single Output 0.8 Volt to 3.6 Volt 6A 6-Pin DIP Module
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Current - Output 1
Depth
Efficiency
Features
Frequency
Height
Isolation
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Input Voltage (DC)
Max Operating Temperature
Max Output Current
Max Output Power
Max Output Voltage
Max Power Dissipation
Min Input Voltage
Min Input Voltage (DC)
Min Operating Temperature
Min Output Voltage
Nominal Input Voltage
Number of Outputs
Number of Pins
Output Current
Output Power
Output Voltage
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Topology
Voltage - Output 1
Width
Description
Module
Tin
6 A
22.1 mm
95 %
UVLO
600 kHz
8.5 mm
Non-Isolated
Lead Free
22.1 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
5.5 V
5.5 V
85 °C
6 A
21.6 W
3.6 V
21.6 W
4.5 V
4.5 V
-40 °C
800 mV
5.5 V
1
6
6 A
21.6 W
3.6 V
No
No
Compliant
8504408500, 8504408500|8504408500|8504408500|8504408500|8504408500
8.25 mm
Buck
3.6 V
12.57 mm
₹2593.11
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2593.11
₹2593.11
10
₹2457.32
₹24573.24
25
₹2405.50
₹60137.46
50
₹2404.66
₹120232.83
100
₹2175.28
₹217527.52
500
₹2175.28
₹1087637.63
1000
₹2135.76
₹2135764.63
