RB8522-16-3M0
Manufacturer
Schaffner
Description

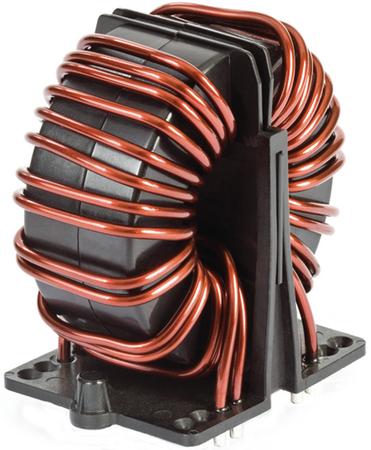

Common Mode Chokes Dual 3000uH 1kHz 16A 0.0084Ohm DCR Thru-Hole
Datasheet
DownloadProduct Attributes
Type
Current Rating
DC Resistance (DCR)
Depth
Height
Inductance
Lead Diameter
Lead Pitch
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Packaging
REACH SVHC
Resistance
RoHS
Self Resonant Frequency
Series Resistance
Termination
Tolerance
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
16 A
8.4 mΩ
43.4 mm
58 mm
3 mH
2 mm
5.08 mm
50 mm
Production (Last Updated: 7 months ago)
16 A
16 A
125 °C
-40 °C
Radial, Through Hole
2
Bulk
Yes
8.4 mΩ
Compliant
400 Hz
8.4 mΩ
Radial
50 %
600 V
1 kV
171.999987 g
43.4086 mm
₹2624.22
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹2624.22
₹2624.22
10
₹2237.82
₹22378.15
25
₹2144.54
₹53613.51
50
₹2143.46
₹107173.04
100
₹2027.20
₹202720.35
