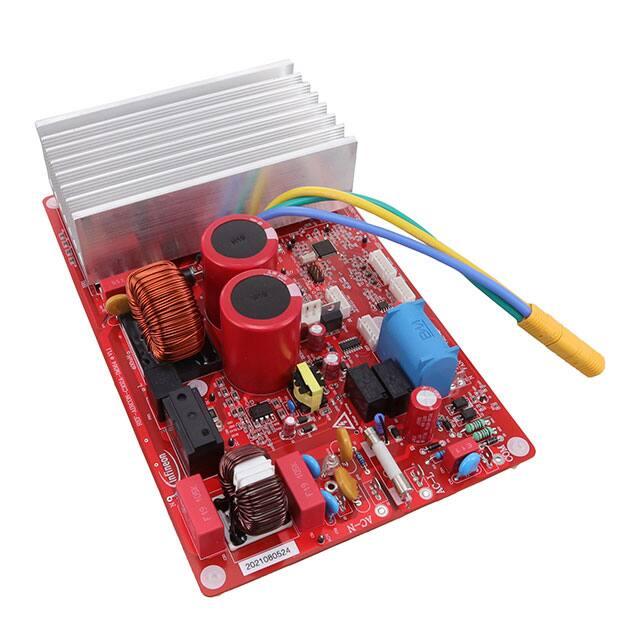

Name: REF-AIRCON-C302A-IM564 - Reference Design Kit, 3-Ph Servo Motor Rohs Compliant: Yes |Infineon REFAIRCONC302AIM564TOBO1
Brand: Infineon
Price: 12547.81 INR
Availability: InStock

Reference Design Kit, 3-Ph Servo Motor Rohs Compliant: Yes |Infineon REFAIRCONC302AIM564TOBO1

ICE5AR4770BZS/1ED44175/IMC302A/IM564-X6D AC to DC Switching Converter/Gate and Power Driver/Motion Motor Control 4.95VDC to 5.05VDC/10.8VDC to 13.2VDC/14.7VDC to 15.3VDC Output Reference Design Board

REF-AIRCON-C302-IM564 is a 3-phase turnkey motor drive for air conditioner outdoor units (ODU) with an IMC302 iMOTION controller, a CIPOS Mini IPM IM564-X6D inverter with integrated PFC stage, a 1ED44175 gate driver for the PFC stage and a CoolSET ICE5AR4770BZS for the auxiliary supply.The reference board enables customer to design more efficient ODUs with smaller form factors compared to discrete implementations. Moreover the IMC302 iMOTION controller provides a fully featured motor control (MCE2.0) which allows to reduce development cycle time by concentrating on application development rather than on basic motor control.

REF-AIRCON-C302A-IM564
