Name: REFFRIDGEC101T6EDTOBO1 - Reference Design Board, Motor Control Rohs Compliant: Yes |Infineon REFFRIDGEC101T6EDTOBO1
Brand: Infineon
Price: 22651.56 INR
Availability: InStock

Reference Design Board, Motor Control Rohs Compliant: Yes |Infineon REFFRIDGEC101T6EDTOBO1

Controller/Driver Power Management Evaluation Board

RefrigeratorCompressor Driver Reference Design Kit

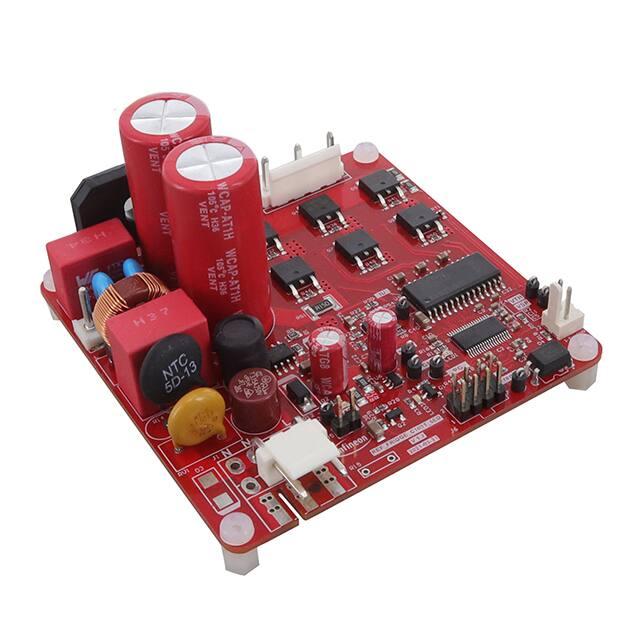

The REF_Fridge_C101T_6ED is a ready-to-use reference board designed for refrigerator compressors. It demonstrates a one-stop shop Infineon solution, including 600 V three-phase gate driver IC 6EDL04I06PT, 600 V RC-D2 IGBT IKD04N60RC2, digital motor control IC iMOTION IMC101T-T038 and linear voltage regulators IFX54211MB V33.This discrete solution with combination of our gate driver, IGBT and motor control IC offers maximum layout and design flexibility, e.g. for multi-platform use for different power levels.The design can easily be copied to a final mass-production application board, and therefore has a fast time to market.It can be interfaced through iMOTION Link. This tool is designed to program and debug different series of iMOTION motor control ICs. It is essential for tuning your motor control system.

REFFRIDGEC101T6EDTOBO1
