Name: REFFRIDGED111TMOSTOBO1 - Ref Design Brd, Refrigerator Compressor Rohs Compliant: Yes |Infineon REFFRIDGED111TMOSTOBO1
Brand: Infineon
Price: 21530.15 INR
Availability: InStock

Ref Design Brd, Refrigerator Compressor Rohs Compliant: Yes |Infineon REFFRIDGED111TMOSTOBO1

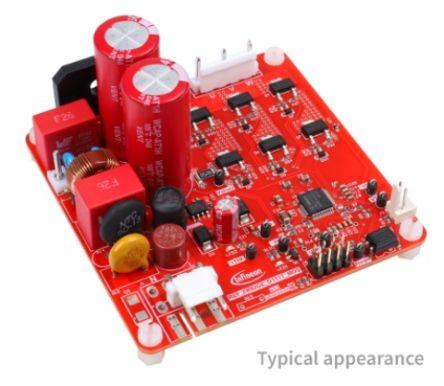

The REF_Fridge_D111T_MOS board is a ready-to-use three-phase inverter designed for refrigerator compressors. It demonstrates the whole Infineon solution including the iMOTION driver IMD111T-6F040 and the 600 V CoolMOS PFD7 super junction MOSFET IPN60R1K0PFD7S.The reference board is designed to provide easy to use power stage based on our discrete CoolMOS Superjunction MOSFET. The board is equipped with all assembly groups for sensorless field oriented control (FOC). It provides a single-phase AC-connector, rectifier, and three-phase output for connecting the motor. The power stage also contains emitter shunts for current sensing and a voltage divider for DC-link voltage measurement.It can be easily interfaced through iMOTION Link. This tool is designed to program and debug different series of iMOTION motor control ICs. It is essential for tuning your motor control system.

REFFRIDGED111TMOSTOBO1
