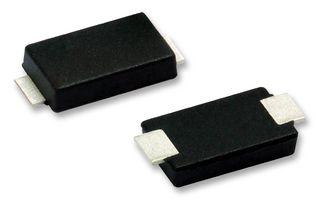

RS1GL
Manufacturer
Taiwan Semiconductor
Description
Rectifier, Single, 400V, 0.8A, Sub Sma Rohs Compliant: Yes |Taiwan Semiconductor RS1GL
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Reverse Current
Power Dissipation
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Termination
Width
Description
SMD/SMT
Non-Compliant
Single
800 mA
1.3 V
1.43 mm
2.9 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
30 A
150 °C
150 °C
800 mA
400 V
5 µA
30 A
-55 °C
Surface Mount
1
2
2
Cut Tape
5 µA
400 mW
No
150 ns
150 ns
400 V
400 V
Compliant
SMD/SMT
1.9 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹35.88
Total Price
₹107.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹108.51
₹108.51
10
₹21.88
₹218.79
25
₹21.91
₹547.85
50
₹21.90
₹1094.81
100
₹13.80
₹1379.76
500
₹10.25
₹5127.35
1000
₹9.11
₹9109.60
