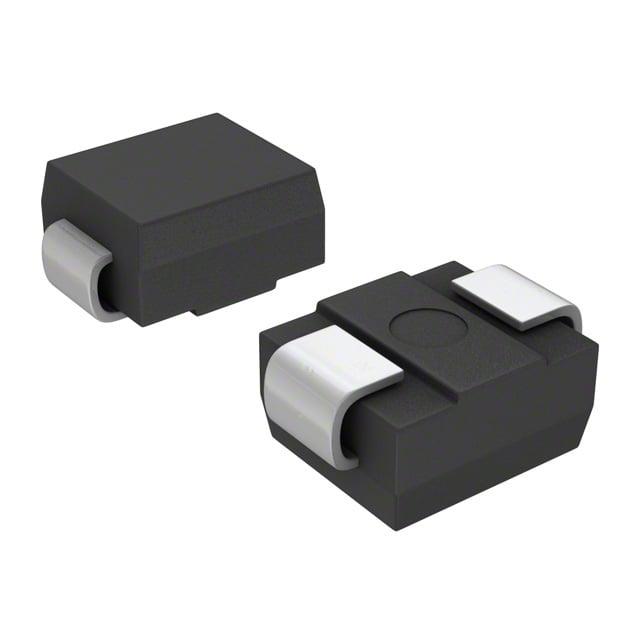

RS2M
Manufacturer
Taiwan Semiconductor
Description
TAIWAN SEMICONDUCTOR - RS2M - Standard Recovery Diode, 1 kV, 2 A, Single, 1.3 V, 500 ns, 50 A
Datasheet
DownloadProduct Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Reverse Recovery Time
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Standard
1000 V
2A
1.3 V @ 2 A
Fast Recovery =< 500ns, > 200mA (Io)
500 ns
5 µA @ 1000 V
50pF @ 4V, 1MHz
Surface Mount
DO-214AA, SMB
DO-214AA (SMB)
-55°C ~ 150°C
₹53.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹24.77
₹247.72
25
₹24.77
₹619.30
50
₹23.18
₹1159.24
100
₹20.70
₹2069.73
500
₹15.43
₹7713.45
1000
₹15.43
₹15425.99
Product Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Reverse Recovery Time
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Standard
1000 V
2A
1.3 V @ 2 A
Fast Recovery =< 500ns, > 200mA (Io)
500 ns
5 µA @ 1000 V
50pF @ 4V, 1MHz
Surface Mount
DO-214AA, SMB
DO-214AA (SMB)
-55°C ~ 150°C
