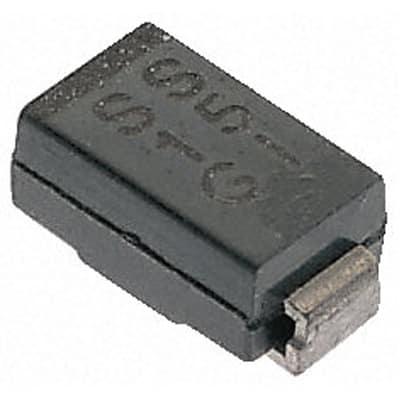

RSX501L-20TE25
Manufacturer
ROHM
Description
SCHOTTKY BARRIER DIODE Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 25V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
5 A
SMA
5 A
Single
5 A
390 mV
2.2 mm
Lead Free
4.5 mm
NRND (Last Updated: 7 months ago)
70 A
125 °C
125 °C
5 A
25 V
500 µA
20 V
70 A
-40 °C
Surface Mount
1
2
2
5 A
Cut Tape
70 A
500 µA
Standard
No
No SVHC
25 V
20 V
Compliant
8541100080|8541100080|8541100080|8541100080|8541100080
25 V
2.6 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
