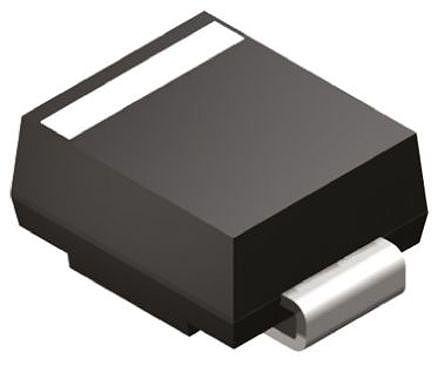

S3DB-13-F
Manufacturer
Diodes Inc.
Description
Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
3 A
40 pF
SMB
Non-Compliant
3 A
Single
3 A
1.15 V
2.42 mm
Lead Free
4.57 mm
Production (Last Updated: 9 months ago)
100 A
150 °C
3 A
200 V
200 V
100 A
-65 °C
Surface Mount
1
2
2
3 A
Cut Tape
100 A
10 µA
Standard
No
No
200 V
200 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
SMD/SMT
200 V
92.986436 mg
3.94 mm
In Stock
Quantity
MOQ : 5
Minimum Qty : 5
Per Unit Price
₹24.50
Total Price
₹122.50
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹123.38
₹123.38
10
₹20.45
₹204.46
25
₹20.46
₹511.60
50
₹20.46
₹1023.19
100
₹16.59
₹1659.49
500
₹16.60
₹8298.32
1000
₹15.44
₹15439.50
