S5M-E3/57T
Manufacturer
Vishay
Description

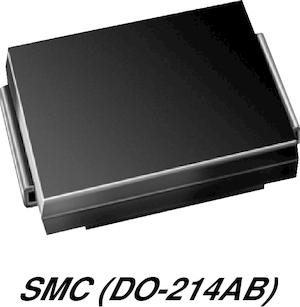

S5M-E3/57T, SMT Diode, 1000V 5A, 2.5us, 2-Pin DO-214AB | Siliconix / Vishay S5M-E3/57T
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Current
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Recovery Time
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Voltage
Voltage Rating (DC)
Width
Description
5 A
40 pF
SMC
Tin
5 A
5 A
Single
5 A
1.15 V
2.62 mm
Lead Free
7.11 mm
100 A
150 °C
150 °C
1 kV
1 kV
100 A
-55 °C
Surface Mount
2
5 A
Cut Tape
100 A
10 µA
Standard
No
2.5 µs
2.5 µs
1 kV
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
1 kV
1 kV
6.22 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹52.00
Total Price
₹103.99
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.99
₹103.99
10
₹32.43
₹324.32
25
₹32.45
₹811.24
50
₹32.45
₹1622.47
100
₹27.19
₹2719.20
500
₹17.18
₹8588.21
1000
₹13.24
₹13238.89
