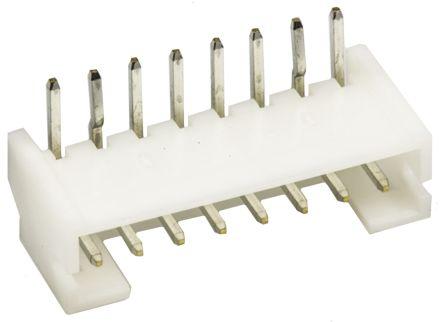

S8B-PH-K-S(LF)(SN)
Manufacturer
JST
Description
Conn Shrouded Header (4 Sides) HDR 8 POS 2mm Solder RA Side Entry Thru-Hole Box
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Fastening Type
Flammability Rating
Gender
Height
Insulation Resistance
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Termination
Voltage Rating
Voltage Rating (AC)
Weight
Width
Working Voltage
Description
Natural, White
Male Pin
Copper, Tin
3.302 mm
Tin
20 mΩ
2 A
7.6 mm
Detent
UL94 V-0
Male
4.8 mm
1 GΩ
Lead Free
2 mm
7.874 mm
2 A
85 °C
100 V
-25 °C
Through Hole
8
8
8
8
1
Right Angle
Bulk
2 mm
No
Compliant
Solder
100 V
100 V
28.349523 g
4.5 mm
100 V
₹37.52
Out of Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹30.01
₹300.12
25
₹30.09
₹752.13
50
₹30.09
₹1504.26
100
₹29.20
₹2919.76
500
₹29.19
₹14597.00
1000
₹19.86
₹19864.65
