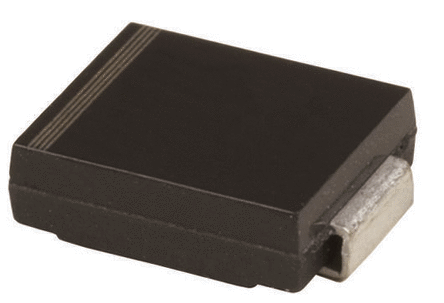

S8MC-13
Manufacturer
Diodes Inc.
Description
Rectifier Diode, 1 Phase, 1 Element, 8A, 1000V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Weight
Width
Description
8 A
45 pF
SMC
Non-Compliant
Tin
Single
8 A
985 mV
2.5 mm
Lead Free
7.11 mm
Production (Last Updated: 9 months ago)
200 A
150 °C
150 °C
8 A
1 kV
1 kV
200 A
-65 °C
Surface Mount
1
2
2
200 A
10 µA
No
No
1 kV
1 kV
1 kV
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
210.013267 mg
6.22 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹67.05
Total Price
₹134.09
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹134.09
₹134.09
10
₹48.88
₹488.78
25
₹48.88
₹1221.94
50
₹48.88
₹2443.88
100
₹36.65
₹3664.75
500
₹28.27
₹14134.70
1000
₹21.57
₹21571.20
