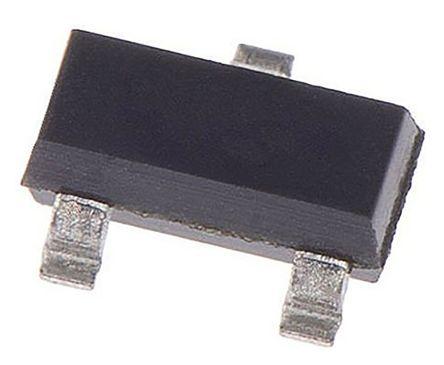

SB05-05C-TB-E
Manufacturer
onsemi
Description
ON Semi SB05-05C-TB-E; SMT Schottky Diode; 50V 500mA; 10ns; 3-Pin SOT-23
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Description
500 mA
TO-236-3
Compliant
Tin Bismuth
Single
500 mA
550 mV
Lead Free
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
5 A
125 °C
500 mA
50 V
50 V
-55 °C
1
3
3
Tape and Reel
5 A
50 µA
No
Yes
10 ns
50 V
Compliant
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹46.46
Total Price
₹139.39
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹137.62
₹137.62
10
₹31.16
₹311.63
25
₹31.16
₹779.06
50
₹31.16
₹1558.11
100
₹21.85
₹2185.43
500
₹18.66
₹9330.15
1000
₹15.13
₹15131.49
