SBR12U100P5-13
Manufacturer
Diodes Inc.
Description

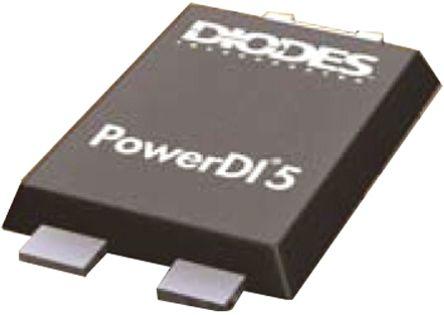

Diode Super Barrier Rectifier 100V 12A 3-Pin(2+Tab) PowerDI 5 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Weight
Width
Description
12 A
Non-Compliant
Common Anode
12 A
710 mV
1.15 mm
Lead Free
5.45 mm
Production (Last Updated: 9 months ago)
250 A
150 °C
12 A
100 V
100 V
-65 °C
Surface Mount
1
5
3
Cut Tape
250 A
40 mA
No
5 ns
100 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
95.991485 mg
4.05 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹64.38
Total Price
₹128.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹128.76
₹128.76
10
₹49.12
₹491.24
25
₹49.12
₹1228.09
50
₹49.12
₹2456.19
100
₹39.31
₹3931.18
500
₹33.93
₹16964.85
1000
₹31.06
₹31056.09
