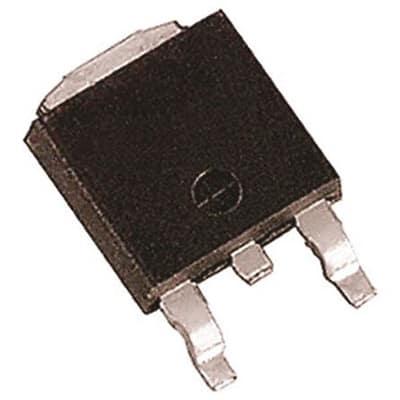

SBR15U100CTL-13
Manufacturer
Diodes Inc.
Description
Diode Super Barrier Rectifier 100V 15A 3-Pin(2+Tab) DPAK T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Recovery Time
Reverse Voltage (DC)
RoHS
Weight
Width
Description
7.5 A
DPAK
Tin
Common Cathode
15 A
800 mV
2.29 mm
Lead Free
6.58 mm
175 °C
100 V
100 V
-65 °C
Surface Mount
3
100 A
80 µA
No
No SVHC
6.8 ns
100 V
Compliant
3.949996 g
6.1 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹91.59
Total Price
₹183.18
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹183.18
₹183.18
10
₹62.96
₹629.55
25
₹62.99
₹1574.77
50
₹62.99
₹3149.55
100
₹47.76
₹4775.89
500
₹38.66
₹19331.21
1000
₹33.97
₹33966.55
