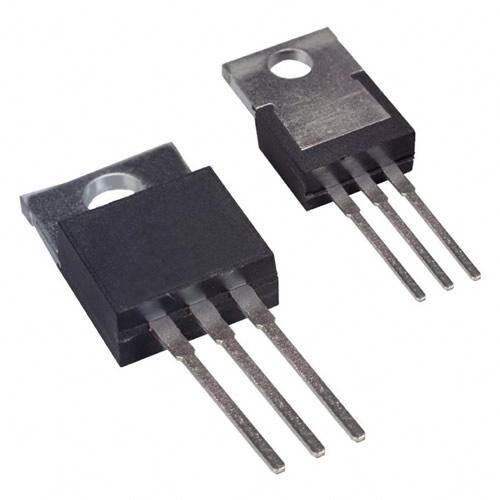

SBR20A150CT
Manufacturer
Diodes Inc.
Description
Diode Super Barrier Rectifier 150V 20A 3-Pin(3+Tab) TO-220AB Tube
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Termination
Weight
Width
Description
10 A
TO-220-3
Non-Compliant
Common Cathode
20 A
680 mV
8.89 mm
Lead Free
10.4 mm
Production (Last Updated: 9 months ago)
180 A
175 °C
10 A
150 V
150 V
-65 °C
Through Hole
2
3
3
180 A
100 µA
No
No
150 V
150 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
Radial
6.000006 g
4.82 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹120.86
Total Price
₹120.86
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹120.86
₹120.86
10
₹109.48
₹1094.81
25
₹109.50
₹2737.47
50
₹57.59
₹2879.50
