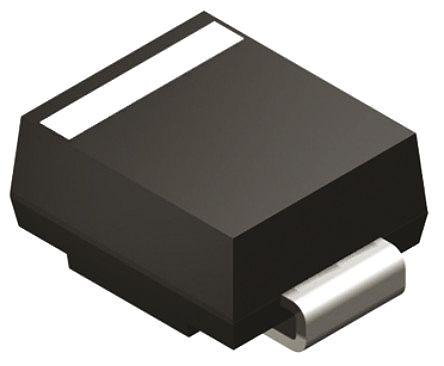

SBR3150SB-13
Manufacturer
Diodes Inc.
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 150V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
REACH SVHC
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Weight
Width
Description
3 A
SMB
Non-Compliant
Single
3 A
820 mV
4.57 mm
Lead Free
4.57 mm
Production (Last Updated: 9 months ago)
80 A
150 °C
3 A
150 V
150 V
-65 °C
Surface Mount
1
2
2
80 A
500 µA
No
5 ns
150 V
150 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
92.986436 mg
3.94 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹87.78
Total Price
₹175.56
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹176.44
₹176.44
10
₹46.58
₹465.80
25
₹46.54
₹1163.62
50
₹46.56
₹2328.13
100
₹37.94
₹3794.34
500
₹34.41
₹17202.90
1000
₹33.76
₹33755.62
