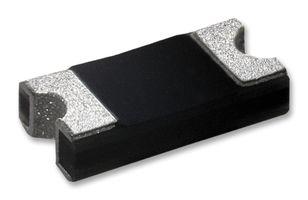

SD1206S040S0R5
Manufacturer
AVX
Description
Small Signal Schottky Diode, Single, 40 V, 500 Ma, 480 Mv, 15 A, 125 C Rohs Compliant: Yes
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Case Code (Imperial)
Case Code (Metric)
Element Configuration
Forward Current
Forward Voltage
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Description
500 mA
1206
1206
3216
Single
500 mA
480 mV
Production (Last Updated: 9 months ago)
15 A
125 °C
500 mA
40 V
50 µA
40 V
15 A
-55 °C
Surface Mount
1
2
2
Cut Tape
15 A
50 nA
No
Yes
40 V
Compliant
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹39.11
Total Price
₹117.33
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹116.45
₹116.45
10
₹26.55
₹265.54
25
₹26.55
₹663.86
50
₹26.55
₹1327.71
100
₹20.95
₹2095.22
500
₹15.85
₹7926.57
1000
₹13.33
₹13333.57
