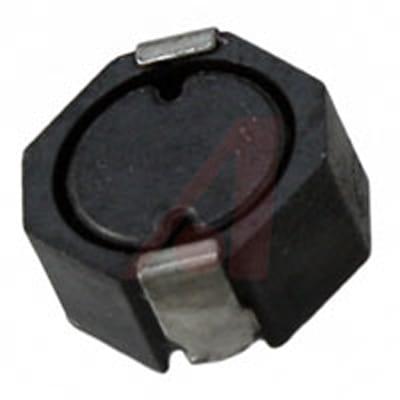

SD53-4R7-R
Manufacturer
Eaton
Description
Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 2.01A 45mOhm DCR 2020 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
2020
2020
Wirewound
Ferrite
2.01 A
45 mΩ
5.2 mm
3 mm
2.9972 mm
4.7 µH
20 %
Lead Free
5.2 mm
Production (Last Updated: 7 months ago)
2.1 A
2.01 A
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
No
Yes
39 mΩ
2.01 A
Compliant
2.1 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
Yes
SMD/SMT
100 kHz
20 %
453.59237 mg
5.2 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹229.41
Total Price
₹229.41
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹229.41
₹229.41
10
₹150.45
₹1504.53
25
₹150.42
₹3760.43
50
₹149.55
₹7477.28
100
₹130.12
₹13011.66
500
₹115.87
₹57936.71
1000
₹130.12
₹130121.08
