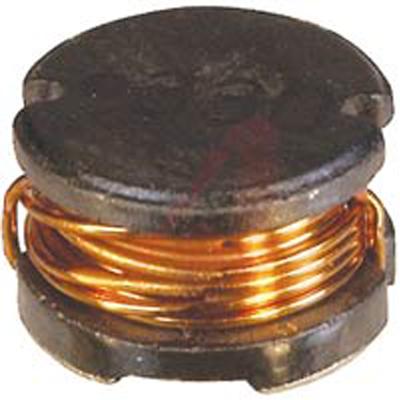

SDR0805-150ML
Manufacturer
Bourns
Description
Inductor Power Wirewound 15uH 20% 1KHz 25Q-Factor Ferrite 1.8A 90mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Composition
Core Material
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Wirewound
Ferrite
1.8 A
90 mΩ
7.8 mm
5.3 mm
5.3086 mm
15 µH
20 %
7.7978 mm
1.8 A
125 °C
Not
-40 °C
Surface Mount
2
25
No
No
90 MΩ
1.8 A
Compliant
2.7 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
16 MHz
Unshielded
SMD/SMT
1 kHz
20 %
5.3 mm
₹53.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹44.10
₹441.03
25
₹44.07
₹1101.66
50
₹44.07
₹2203.32
100
₹36.22
₹3622.49
500
₹36.22
₹18112.42
1000
₹28.29
₹28294.54
