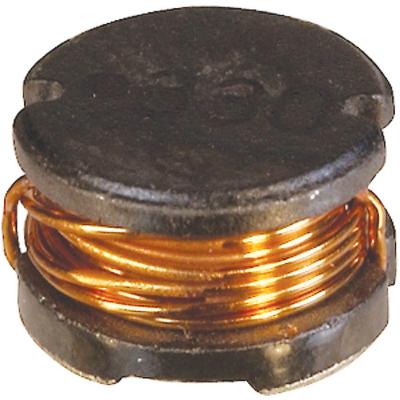

SDR0805-471KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 340mA 1.96Ohm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
China RoHS
Coil Resistance
Composition
Contact Plating
Core Material
Current
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
3131
0805
2012
Compliant
1.96 Ω
Wirewound
Tin
Ferrite
340 mA
340 mA
1.96 Ω
7.8 mm
5.3 mm
5.3086 mm
470 µH
10 %
7.7978 mm
Production (Last Updated: 7 months ago)
340 mA
340 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
Tape & Reel
12
No
Yes
1.96 Ω
340 mA
Compliant
500 mA
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
4 MHz
No
SMD/SMT
796 kHz
10 %
7.8 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹70.25
Total Price
₹140.49
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹140.49
₹140.49
10
₹45.97
₹459.72
25
₹45.97
₹1149.29
50
₹45.90
₹2295.03
100
₹35.62
₹3562.14
500
₹35.61
₹17804.45
1000
₹26.38
₹26377.23
