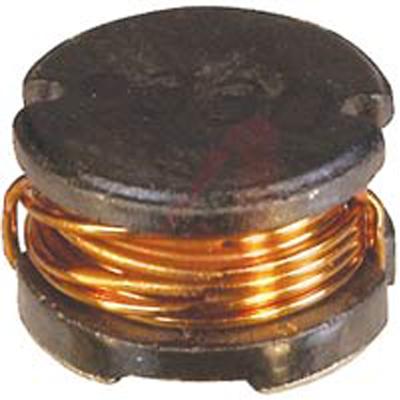

SDR0805-5R6ML
Manufacturer
Bourns
Description
Inductor Power Wirewound 5.6uH 20% 1KHz 31Q-Factor Ferrite 3.5A 40mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Composition
Contact Plating
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Wirewound
Tin
Ferrite
3.5 A
3.5 A
40 mΩ
7.8 mm
7.8 mm
5.3 mm
5.3086 mm
5.6 µH
20 %
7.8 mm
3.5 A
125 °C
Not
-40 °C
Surface Mount
31
No
No
40 MΩ
3.5 A
Compliant
4.6 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
34 MHz
Unshielded
SMD/SMT
1 kHz
20 %
5.3 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹57.39
Total Price
₹114.78
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹114.78
₹114.78
10
₹47.93
₹479.28
25
₹47.98
₹1199.53
50
₹45.92
₹2295.78
100
₹38.20
₹3820.32
500
₹33.48
₹16738.61
1000
₹32.46
₹32458.47
