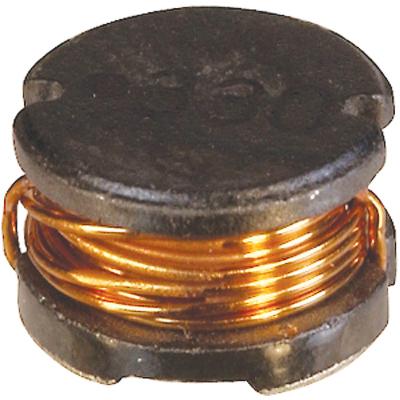

SDR0805-680KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 68uH 10% 1KHz 15Q-Factor Ferrite 850mA 300mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Coil Resistance
Composition
Core Material
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
3131
Compliant
300 mΩ
Wirewound
Ferrite
850 mA
300 mΩ
7.8 mm
5.3 mm
5.3086 mm
68 µH
10 %
7.7978 mm
Production (Last Updated: 7 months ago)
850 mA
850 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
15
No
Yes
300 MΩ
850 mA
Compliant
1.3 A
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
8 MHz
No
SMD/SMT
2.52 MHz
10 %
7.8 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹40.90
Total Price
₹122.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹122.71
₹122.71
10
₹37.08
₹370.80
25
₹37.10
₹927.44
50
₹37.13
₹1856.65
100
₹32.43
₹3242.91
500
₹31.89
₹15945.13
1000
₹31.89
₹31890.27
