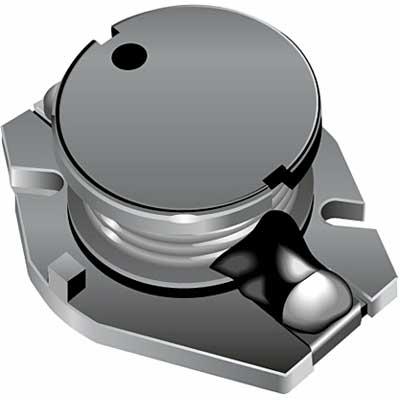

SDR1005-151KL
Manufacturer
Bourns
Description
Ind Power Wirewound 150uH 10% 1KHz 58Q-Factor Ferrite 800mA T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Core Material
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Inductance Tolerance
Lead Free
Lead Pitch
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1005
Compliant
Copper, Tin
Ferrite
800 mA
590 mΩ
10.2 mm
5 mm
150 µH
10 %
Lead Free
7.6 mm
12.9 mm
Production (Last Updated: 7 months ago)
800 mA
800 mA
125 °C
Not
-40 °C
Surface Mount
1
2
2
Cut Tape
30
No
Yes
590 MΩ
800 mA
Compliant
1 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
6 MHz
No
SMD/SMT
1 kHz
10 %
10 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹84.47
Total Price
₹168.95
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹168.95
₹168.95
10
₹55.22
₹552.19
25
₹55.11
₹1377.82
50
₹55.15
₹2757.41
100
₹41.92
₹4191.69
500
₹41.92
₹20958.44
1000
₹36.26
₹36263.35
