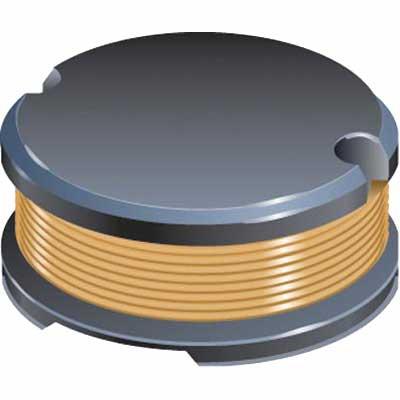

SDR1006-680KL
Manufacturer
Bourns
Description
Inductor Power Wirewound 68uH 10% 1KHz 15Q-Factor Ferrite 1.1A 220mOhm DCR T/R
Datasheet
DownloadProduct Attributes
Type
Body Material
China RoHS
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Diameter
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Max Current Rating
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Circuits
Number of Pins
Number of Terminals
Q Factor
Radiation Hardening
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
Ferrite
Compliant
Wirewound
Ferrite
1.1 A
1.1 A
220 mΩ
9.8 mm
5.8 mm
5.7912 mm
68 µH
10 %
9.8044 mm
Production (Last Updated: 7 months ago)
1.1 A
1.1 A
125 °C
Not
-40 °C
Surface Mount
1
2
2
15
No
Yes
1.1 A
Compliant
2 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
7 MHz
No
SMD/SMT
1 kHz
10 %
9.8 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹36.46
Total Price
₹109.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹109.37
₹109.37
10
₹36.28
₹362.79
25
₹36.28
₹906.98
50
₹36.26
₹1813.08
100
₹36.26
₹3626.16
500
₹36.26
₹18131.68
1000
₹36.26
₹36263.35
