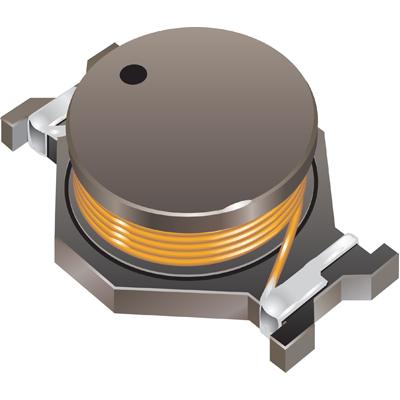

SDR2207-470KL
Manufacturer
Bourns
Description
Ind Power Wirewound 47uH 10% 100KHz 27Q-Factor Ferrite 2.8A T/R
Datasheet
DownloadProduct Attributes
Type
Coil Resistance
Composition
Core Material
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Q Factor
REACH SVHC
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Shielding
Termination
Test Frequency
Tolerance
Width
Description
91.2 mΩ
Wirewound
Ferrite
2.8 A
91.2 mΩ
15.3 mm
7 mm
7.7978 mm
47 µH
10 %
22 mm
2.8 A
125 °C
Not
-40 °C
Surface Mount
2
27
No
2.8 A
Compliant
5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
9 MHz
Unshielded
SMD/SMT
100 kHz
10 %
15 mm
₹123.53
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹123.53
₹123.53
10
₹101.47
₹1014.74
25
₹101.42
₹2535.47
50
₹101.42
₹5070.93
100
₹83.37
₹8337.48
500
₹72.73
₹36366.68
1000
₹70.28
₹70279.32
