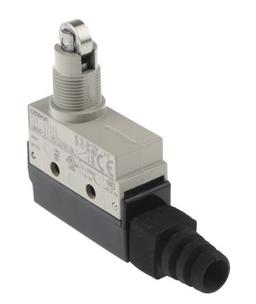

SHL-Q2255
Manufacturer
Omron
Description
Snap Acting/limit Switch SPST Momentary 10A 14VDC 3.5MM Panel Mount
Datasheet
DownloadProduct Attributes
Type
Contact Current Rating
Contact Resistance
Contact Voltage Rating (AC)
Depth
Differential Travel
Electrical Life
Height
Housing Material
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
10 A
15 mΩ
250 V
17.5 mm
508 µm
500 kcycles
35.9 mm
Zinc
73.5 mm
Production (Last Updated: 7 months ago)
10 A
80 °C
480 V
14 V
10 Mcycles
-10 °C
Panel, Screw
9.81 N
43.053 mm
Straight
2.0066 mm
1.5 mm
Dust Tight, IP67, Waterproof
Unknown
Compliant
On-Mom
Screw
SPST
125 V
30 V
35.9 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹8712.38
Total Price
₹8712.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹8712.38
₹8712.38
10
₹8034.46
₹80344.55
25
₹7564.00
₹189099.94
