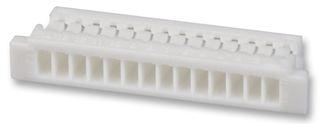

SHR-14V-S-B
Manufacturer
JST
Description
Board Connector, 14 Contact(s), 1 Row(s), Female, Crimp Terminal
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Depth
Gender
Housing Color
Housing Material
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Termination
Width
Wire Gauge (Max)
Wire Gauge (Min)
Description
Natural
Receptacle, Socket
Brass
Tin
5 mm
Receptacle
White
PBT
Lead Free
1 mm
17 mm
1 A
85 °C
50 V
-25 °C
Free Hanging
14
14
1
Straight
Bulk
1 mm
No
Compliant
Crimp
2.8 mm
32 AWG
28 AWG
₹20.68
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.93
₹179.34
25
₹16.73
₹418.15
50
₹15.92
₹796.05
100
₹15.15
₹1515.24
500
₹13.53
₹6765.51
1000
₹13.53
₹13530.10
