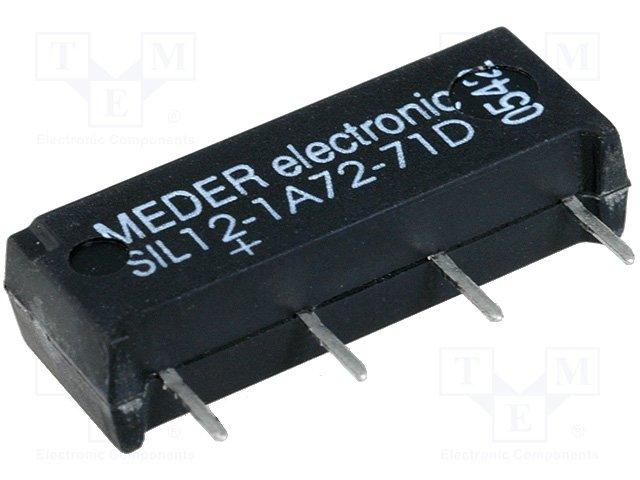

SIL12-1A72-71D
Manufacturer
Standex-Meder Electronics
Description
Reed Relay 12VDC 1KOhm 0.5A SPST-NO(19.8x5.08x7.8)mm THT Dry
Datasheet
DownloadProduct Attributes
Type
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Depth
Electrical Life
Height
Insulation Resistance
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Operate Time
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Schedule B
Sealable
Switching Current
Switching Voltage
Termination
Throw Configuration
Weight
Width
Description
UL
SIP
12 mA
145 mW
1 kΩ
Non-Latching
8.4 V
500 mA
Tin
100 mΩ
200 V
5.08 mm
1 Gcycles
7.8 mm
10 GΩ
19.8 mm
Production (Last Updated: 7 months ago)
500 mA
70 °C
200 V
-20 °C
Through Hole
4
4
700 µs
Yes
Reed
100 µs
500 µs
Compliant
8536509020
WATER PROOF
1 A
200 V
PC Pin
SPST
1.5 g
5.08 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹438.38
Total Price
₹438.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹438.38
₹438.38
10
₹361.55
₹3615.49
25
₹324.24
₹8105.95
50
₹324.24
₹16211.89
100
₹291.17
₹29116.85
500
₹248.51
₹124255.92
