SIR770DP-T1-GE3
Manufacturer
Vishay
Description

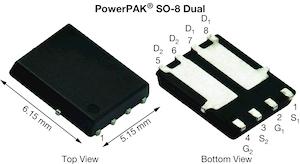

SiR770DP Series 30 V 0.021 Ohm SMT Dual N-Channel MOSFET - PowerPAK SO-8
Datasheet
DownloadProduct Attributes
Type
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Input Capacitance
Lead Free
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Channels
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
RoHS
Threshold Voltage
Weight
Description
8 A
30 V
17.5 mΩ
30 V
Dual
8 ns
20 V
900 pF
Lead Free
150 °C
17.8 W
-55 °C
Surface Mount
2.8 V
2
2
8
3.6 W
No
21 mΩ
Unknown
Compliant
2.8 V
506.605978 mg
₹172.94
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹172.94
₹172.94
10
₹109.62
₹1096.17
25
₹109.65
₹2741.34
50
₹109.65
₹5482.68
100
₹73.04
₹7303.53
500
₹73.04
₹36518.57
1000
₹55.90
₹55903.75
