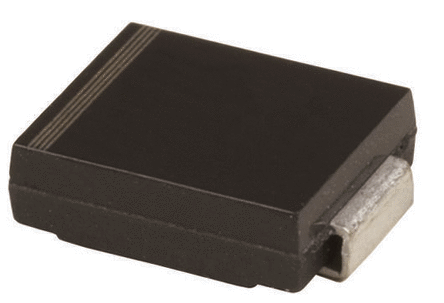

SM15T33CAY
Manufacturer
STMicroelectronics
Description
SM15 Series 59 V Clamp 169 A (8/20s) Ipp Surface Mount Tvs Diode - SMC
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Clamping Voltage
Composition
Depth
Direction
Element Configuration
Height
Leakage Current
Length
Lifecycle Status
Max Breakdown Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Bidirectional Channels
Number of Channels
Number of Pins
Operating Supply Voltage
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Width
Working Voltage
Description
31.4 V
SMC
45.7 V
Zener
6.25 mm
Bidirectional
Single
2.65 mm
200 nA
7.15 mm
Production (Last Updated: 4 years ago)
34.7 V
150 °C
150 °C
1.5 kW
1 µA
33 A
31.4 V
-40 °C
Surface Mount
1
1
2
28.2 V
33 A
1.5 kW
Bidirectional
No
No
No SVHC
28.2 V
Compliant
8541100080
SMD/SMT
1 mA
6.25 mm
28.2 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹117.14
Total Price
₹117.14
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.14
₹117.14
10
₹86.93
₹869.26
25
₹86.93
₹2173.14
50
₹86.93
₹4346.28
100
₹61.41
₹6141.29
500
₹49.61
₹24805.04
1000
₹41.31
₹41309.75
