SMAJ18CA-E3/61
Manufacturer
Vishay
Description

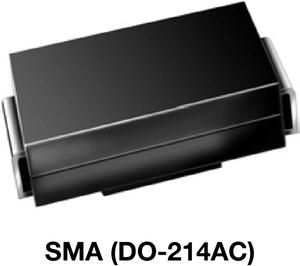

400 W DO-214AC 18 V Bi Directional SMT Transient Voltage Suppressor Diode
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Clamping Voltage
Contact Plating
Direction
Element Configuration
Height
Lead Free
Leakage Current
Length
Max Breakdown Voltage
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Number of Channels
Number of Elements
Number of Pins
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Voltage Rating (DC)
Weight
Width
Description
20 V
SMA
29.2 V
Tin
Bidirectional
Single
2.286 mm
Lead Free
1 µA
4.4958 mm
22.1 V
40 A
150 °C
400 W
1 µA
13.7 A
20 V
-55 °C
1
1
2
18 V
Tape and Reel
13.7 A
400 W
Bidirectional
400 W
400 W
No
Unknown
20 V
18 V
Compliant
8541100080
SMD/SMT
1 mA
18 V
64 mg
2.794 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹34.68
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹21.25
₹212.52
25
₹21.22
₹530.41
50
₹21.22
₹1060.82
100
₹10.66
₹1066.15
500
₹10.67
₹5332.53
1000
₹8.96
₹8958.69
