SMBJ20A-E3/52
Manufacturer
Vishay
Description

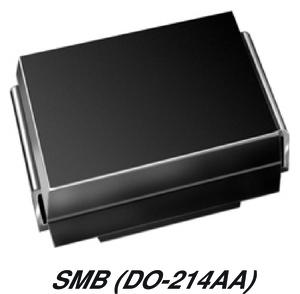

SMBJ Series 600 W 20 V Uni-Directional SMT TRANSZORB TVS Diode - DO-214AA
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Case/Package
Clamping Voltage
Direction
Element Configuration
ESD Protection
Height
Lead Free
Leakage Current
Length
Max Breakdown Voltage
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Operating Supply Voltage
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Termination
Test Current
Width
Description
22.2 V
SMB
32.4 V
Unidirectional
Single
Yes
2.24 mm
Lead Free
1 µA
4.57 mm
24.5 V
150 °C
600 W
1 µA
18.5 A
22.2 V
-55 °C
Surface Mount
1
1
2
20 V
Cut Tape
18.5 A
600 W
Unidirectional
600 W
No
Unknown
22.2 V
20 V
Compliant
SMD/SMT
1 mA
3.94 mm
₹33.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹20.94
₹209.43
25
₹20.94
₹523.57
50
₹20.94
₹1047.13
100
₹8.67
₹867.42
500
₹8.67
₹4335.27
1000
₹7.90
₹7901.94
