SMBJ5.0A-13-F
Manufacturer
Diodes Inc.
Description

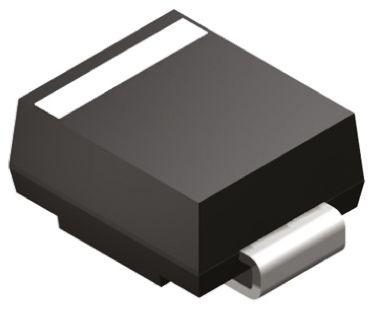

SMBJ5.0A Series 600 W 5.0 V Surface Mount Uni-Directional TVS Diode - DO-214AA
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Capacitance
Case/Package
Clamping Voltage
Composition
Current
Direction
Element Configuration
Forward Voltage
Height
Lead Free
Leakage Current
Length
Max Breakdown Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Number of Unidirectional Channels
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Dissipation
Power Line Protection
Power Rating
Radiation Hardening
Reverse Breakdown Voltage
Reverse Standoff Voltage
RoHS
Schedule B
Termination
Test Current
Voltage
Voltage Rating (DC)
Width
Working Voltage
Description
6.4 V
3 nF
SMB
9.2 V
Zener
100 A
Unidirectional
Single
5 V
2.5 mm
Lead Free
800 µA
4.57 mm
7.23 V
150 °C
150 °C
65.2 A
600 W
800 µA
65.2 A
6.4 V
-55 °C
Surface Mount
1
1
2
1
Tape & Reel (TR)
65.2 A
600 W
Unidirectional
600 W
No
600 W
No
6.4 V
5 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
SMD/SMT
10 mA
5 V
5 V
3.9 mm
5 V
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹26.47
Total Price
₹105.86
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.86
₹105.86
10
₹16.76
₹167.62
25
₹16.81
₹420.37
50
₹16.81
₹840.74
100
₹8.36
₹836.33
500
₹8.36
₹4179.86
1000
₹8.15
₹8148.00
