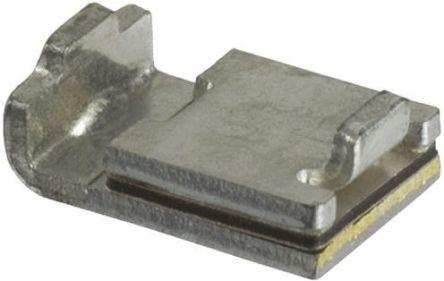

SMD100F-2
Manufacturer
Littelfuse
Description
PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 30V 40A 1.7W 0.12Ohm SMD Solder Pad 2920 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Current Rating
Height
Hold Current
Lifecycle Status
Max Current Rating
Max Operating Temperature
Maximum Resistance 1 Hour (R1max)
Min Operating Temperature
Minimum Resistance Initial (Rmin)
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
REACH SVHC
Resistance
RoHS
Time to Trip
Trip Current
Voltage Rating
Width
Working Voltage
Description
85 °C
40 A
3 mm
1.1 A
Production (Last Updated: 8 months ago)
40 A
85 °C
480 mΩ
-40 °C
120 mΩ
Surface Mount
2
30 V
Tape & Reel
1.7 W
Yes
120 mΩ
Compliant
500 ms
2.2 A
30 V
5.44 mm
30 V
In Stock
Quantity
MOQ : 2
Per Unit Price
₹52.46
Total Price
₹104.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.93
₹104.93
10
₹39.57
₹395.69
25
₹39.57
₹989.24
50
₹32.81
₹1640.57
100
₹30.27
₹3026.84
500
₹25.10
₹12549.28
1000
₹23.14
₹23144.99
Product Attributes
Type
Ambient Temperature Range High
Current Rating
Height
Hold Current
Lifecycle Status
Max Current Rating
Max Operating Temperature
Maximum Resistance 1 Hour (R1max)
Min Operating Temperature
Minimum Resistance Initial (Rmin)
Mount
Number of Terminals
Operating Supply Voltage
Packaging
Power Dissipation
REACH SVHC
Resistance
RoHS
Time to Trip
Trip Current
Voltage Rating
Width
Working Voltage
Description
85 °C
40 A
3 mm
1.1 A
Production (Last Updated: 8 months ago)
40 A
85 °C
480 mΩ
-40 °C
120 mΩ
Surface Mount
2
30 V
Tape & Reel
1.7 W
Yes
120 mΩ
Compliant
500 ms
2.2 A
30 V
5.44 mm
30 V
