SML4743A-E3/61
Manufacturer
Vishay
Description

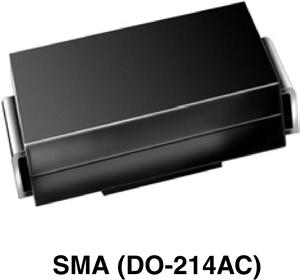

SURFACE MOUNT ZENER DIODE Zener Diode, 13V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Element Configuration
ESD Protection
Height
Impedance
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Polarity
Power Dissipation
Radiation Hardening
REACH SVHC
Reference Voltage
RoHS
Schedule B
Test Current
Tolerance
Voltage Tolerance
Width
Zener Current
Zener Voltage
Description
SMA
Non-Compliant
Tin
Single
No
2.286 mm
10 Ω
4.4958 mm
Production (Last Updated: 9 months ago)
150 °C
1 W
5 µA
-65 °C
Surface Mount
1
2
2
Tape and Reel
Unidirectional
1 W
No
No
13 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
19 mA
5 %
5 %
2.794 mm
19 mA
13 V
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹53.81
Total Price
₹107.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹107.63
₹107.63
10
₹40.93
₹409.34
25
₹40.95
₹1023.79
50
₹40.95
₹2047.59
100
₹27.93
₹2793.05
500
₹21.90
₹10951.63
1000
₹14.60
₹14603.06
