SMZJ3798BHM3_A/H
Manufacturer
Vishay General Semiconductor - Diodes Division
Description

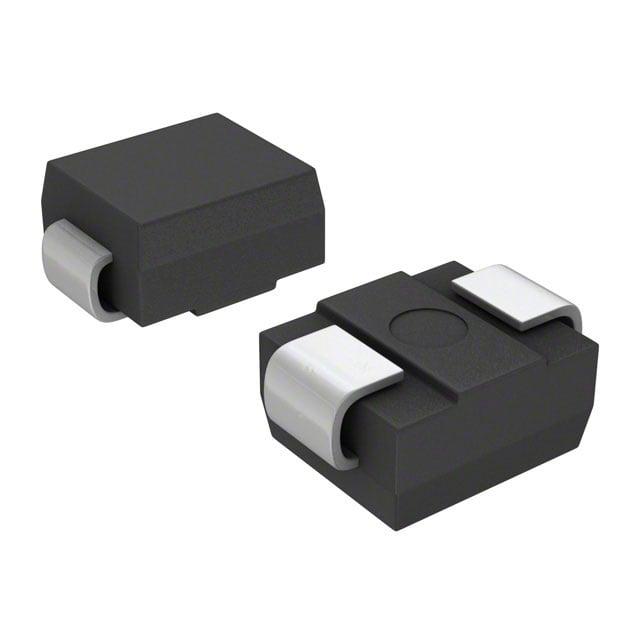

VISHAY - SMZJ3798BHM3_A/H - Zener Single Diode, 24 V, 1.5 W, DO-214AA (SMB), 2 Pins, 150 C, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Zener Voltage
Tolerance
Output Power
Impedance (Max) (Zzt)
Current - Reverse Leakage @ Vr
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
24 V
±5%
1.5 W
19 Ohms
5 µA @ 18.2 V
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
DO-214AA, SMB
DO-214AA (SMB)
₹70.91
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹36.50
₹364.98
25
₹36.50
₹912.44
50
₹36.50
₹1824.90
100
₹29.21
₹2921.44
500
₹25.49
₹12746.27
1000
₹23.04
₹23038.01
Product Attributes
Type
Zener Voltage
Tolerance
Output Power
Impedance (Max) (Zzt)
Current - Reverse Leakage @ Vr
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
24 V
±5%
1.5 W
19 Ohms
5 µA @ 18.2 V
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
DO-214AA, SMB
DO-214AA (SMB)
