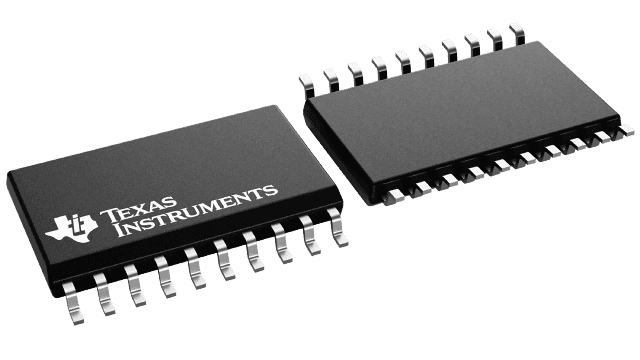

SN74ACT564NSR
Manufacturer
Texas Instruments
Description
Tape & Reel (TR) 74ACT564 e4 74ACT flip flop 12.6mm 10.5ns @ 5V 50pF 90MHz 10.5ns
Product Attributes
Type
Case/Package
Clock Edge Trigger Type
Frequency
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Output Lines
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Current
Packaging
Polarity
Propagation Delay
RoHS
Thickness
Turn-On Delay Time
Weight
Width
Description
SOP
Positive Edge
90 MHz
2 mm
-24 mA
Lead Free
12.6 mm
Production (Last Updated: 3 days ago)
D-Type, Flip-Flop
24 mA
ACTIVE (Last Updated: 3 days ago)
85 °C
5.5 V
-40 °C
4.5 V
Surface Mount
8
8
8
8
1
3
1
8
20
5 V
24 mA
Cut Tape (CT)
Inverting
10.5 ns
Compliant
1.95 mm
6.5 ns
266.712314 mg
5.3 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹100.34
Total Price
₹200.69
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹198.93
₹198.93
10
₹72.26
₹722.64
25
₹65.17
₹1629.25
50
₹65.13
₹3256.74
100
₹57.33
₹5732.74
500
₹51.40
₹25698.32
1000
₹41.17
₹41174.88
