Manufacturer
Texas Instruments
Description

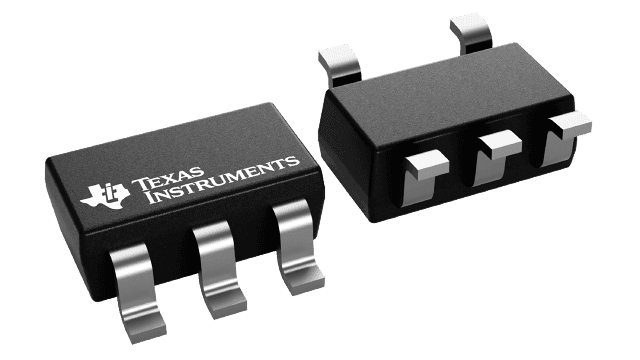

Single 2-INPUT Positive-or Gate Or Gate, Ahc/vhc/h/u/v Series, 1-FUNC, 2-INPUT, Cmos, PDSO5
Datasheet
DownloadType
Ambient Temperature Range High
Case/Package
Contact Plating
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Output Current
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Schmitt Trigger Input
Termination
Thickness
Turn-On Delay Time
Weight
Width
Description
125 °C
SOT-23
Tin
1.45 mm
-8 mA
Lead Free
2.9 mm
Production (Last Updated: 4 days ago)
OR
8 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
8 mA
5.5 V
-40 °C
2 V
Surface Mount
1 µA
1
1
1
1
1
2
2
1
1
5
8 mA
Cut Tape
5.3 ns
1 µA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
No
SMD/SMT
1.2 mm
11.4 ns
15.790684 mg
1.6 mm
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Output Current
Packaging
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Schmitt Trigger Input
Termination
Thickness
Turn-On Delay Time
Weight
Width
Description
125 °C
SOT-23
Tin
1.45 mm
-8 mA
Lead Free
2.9 mm
Production (Last Updated: 4 days ago)
OR
8 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
8 mA
5.5 V
-40 °C
2 V
Surface Mount
1 µA
1
1
1
1
1
2
2
1
1
5
8 mA
Cut Tape
5.3 ns
1 µA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
No
SMD/SMT
1.2 mm
11.4 ns
15.790684 mg
1.6 mm
