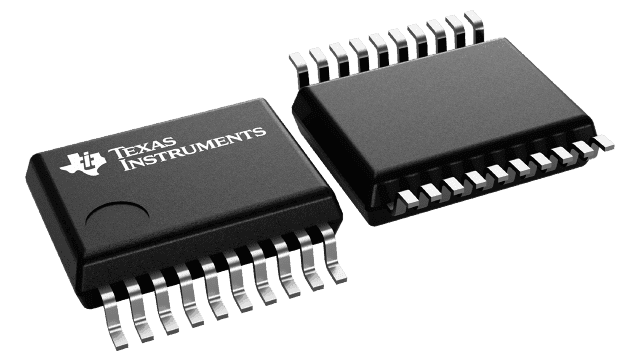

SN74AHCT540DWRE4
Manufacturer
Texas Instruments
Description
Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin SOIC T/R
Product Attributes
Type
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
RoHS
Thickness
Turn-On Delay Time
Width
Description
SOIC
2.65 mm
-8 mA
Lead Free
12.8 mm
Production (Last Updated: 3 days ago)
Buffer, Inverter
8 mA
ACTIVE (Last Updated: 3 days ago)
125 °C
5.5 V
-40 °C
4.5 V
Surface Mount
8
8
1
1
8
8
8
8
20
5 V
Tape and Reel
Inverting
8.5 ns
4 µA
Compliant
2.35 mm
8.5 ns
7.5 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
