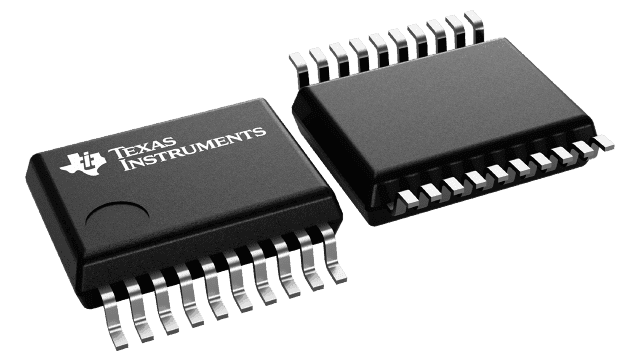

SN74LS244DW
Manufacturer
Texas Instruments
Description
Buffer/Line Driver 8-CH Non-Inverting 3-ST Bipolar 20-Pin SOIC Tube
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Operating Supply Voltage
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Turn-On Delay Time
Width
Description
70 °C
SOIC
2.65 mm
-15 mA
Lead Free
12.8 mm
Obsolete (Last Updated: 3 days ago)
Buffer, Inverting
24 mA
OBSOLETE (Last Updated: 3 days ago)
70 °C
5.25 V
0 °C
4.75 V
Surface Mount
17 mA
8
4
8
2
2
8
4
8
8
20
5 V
Non-Inverting
18 ns
46 mA
No
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
2.35 mm
30 ns
7.5 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
