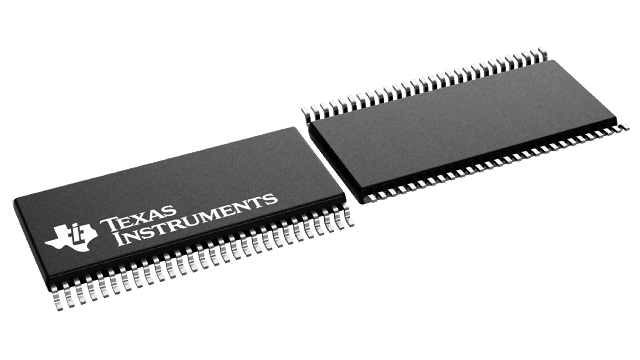

SN75976A1DGG
Manufacturer
Texas Instruments
Description
IC TRANSCEIVER HALF 9/9 56TSSOP "9/9 Transceiver Half RS422, RS485 56-TSSOP"
Product Attributes
Type
Case/Package
Data Rate
Height
Interface
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Drivers
Number of Pins
Number of Receivers
Number of Transceivers
Number of Transmitters
Operating Supply Voltage
Output Current
Output Voltage
Packaging
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Simplex/Duplex
Termination
Thickness
Weight
Width
Description
TSSOP
20 Mbps
1.2 mm
RS-485
14 mm
Production (Last Updated: 3 days ago)
Transceiver
ACTIVE (Last Updated: 3 days ago)
70 °C
2.5 W
5.25 V
0 °C
4.75 V
Surface Mount
60 mA
9
56
9
1
9
5 V
260 mA
1.8 V
Bulk
13.5 ns
No
No
Compliant
Half Duplex
SMD/SMT
1.15 mm
252.792698 mg
6.1 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
