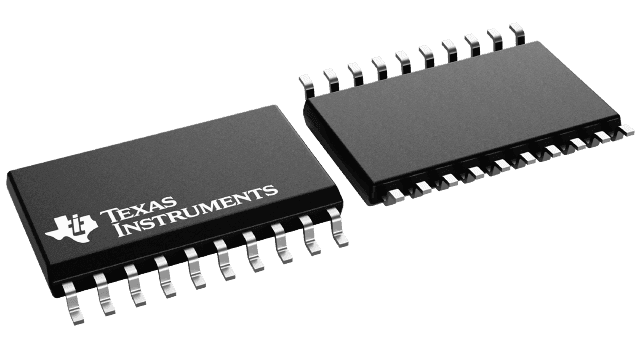

SN75ALS057DWR
Manufacturer
Texas Instruments
Description
Trapezoidal-Waveform Interface Bus Transceiver 20-SOIC 0 to 70
Product Attributes
Type
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Circuits
Number of Drivers
Number of Pins
Number of Receivers
Number of Transceivers
Number of Transmitters
Operating Supply Voltage
Propagation Delay
Radiation Hardening
RoHS
Thickness
Weight
Width
Description
SOIC
2.65 mm
-400 µA
Lead Free
12.8 mm
Production (Last Updated: 1 year ago)
Transceiver
16 mA
ACTIVE (Last Updated: 3 days ago)
70 °C
75 mA
5.25 V
0 °C
4.75 V
Surface Mount
75 mA
4
4
20
4
1
1
5 V
19 ns
No
Compliant
2.35 mm
537.308512 mg
7.5 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
