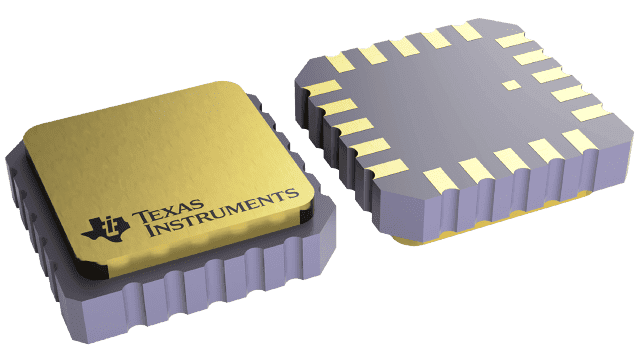

SNJ54ABT2245W
Manufacturer
Texas Instruments
Description
Octal Transceivers And Line/MOS Drivers With 3-State Outputs 20-CFP -55 to 125
Product Attributes
Type
Direction
Height
Lead Free
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Elements
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Type
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
RoHS
Thickness
Turn-On Delay Time
Width
Description
Bidirectional
2.45 mm
Contains Lead
13.09 mm
Production (Last Updated: 3 days ago)
Transceiver
ACTIVE (Last Updated: 3 days ago)
125 °C
5.5 V
-55 °C
4.5 V
Surface Mount
8
8
1
8
20
5 V
TTL
Non-Inverting
6.6 ns
24 mA
No
Non-Compliant
1.84 mm
6.6 ns
6.92 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
