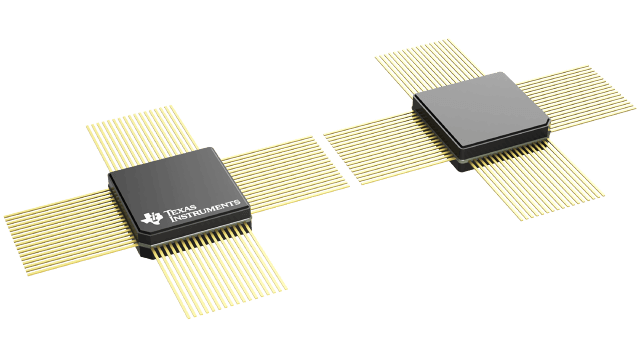

SNJ54ABTH18502AHV
Manufacturer
Texas Instruments
Description
Boundary Scan Reg Bus Transceiver, ABT Series, 2-Func, 9-Bit, True Output, BICMOS, CQFP68
Product Attributes
Type
Direction
Height
Lead Free
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Elements
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Type
Packaging
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
RoHS
Thickness
Width
Description
Bidirectional
3.86 mm
Contains Lead
12.51 mm
Production (Last Updated: 3 days ago)
Transceiver
ACTIVE (Last Updated: 3 days ago)
125 °C
5.5 V
-55 °C
4.5 V
Surface Mount
18
18
2
18
68
5 V
TTL
Rail/Tube
Non-Inverting
18 ns
19 mA
No
Non-Compliant
3.56 mm
12.51 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
