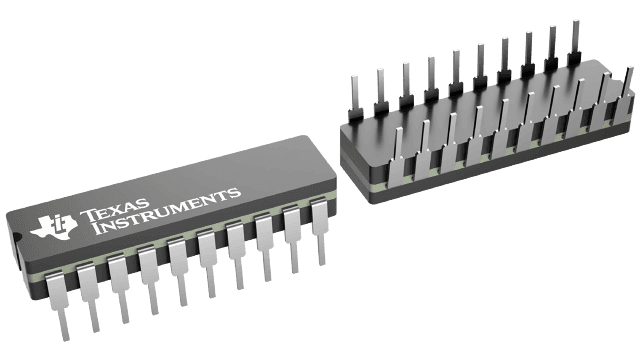

SNJ54AHCT540J
Manufacturer
Texas Instruments
Description
Military 8-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs 20-CDIP -55 to 125
Product Attributes
Type
Case/Package
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Channels
Number of Elements
Number of Inputs
Number of Outputs
Number of Pins
Operating Supply Voltage
Packaging
Polarity
Propagation Delay
Quiescent Current
RoHS
Thickness
Width
Description
CDIP
5.08 mm
-8 mA
Contains Lead
24.2 mm
Production (Last Updated: 3 days ago)
Buffer
8 mA
ACTIVE (Last Updated: 3 days ago)
125 °C
5.5 V
-55 °C
4.5 V
Through Hole
8
8
1
8
8
20
5 V
Rail/Tube
Inverting
12 ns
4 µA
Non-Compliant
4.57 mm
6.92 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
