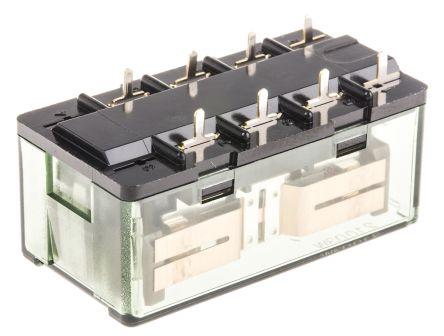

SP2-P-DC12V
Manufacturer
Panasonic
Description
Compact Power Relay, 2 Form C, 15A 250VAC 10A 30VDC, PC Board Terminal Type
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Electrical Life
Height
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Terminals
Operate Time
Packaging
Power Consumption
Radiation Hardening
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
60 °C
25 mA
300 mW
480 Ω
Non-Latching
8.4 V
15 A
Silver, Tin
Gold
30 mΩ
250 V
15 A
25.6 mm
100 kcycles
22 mm
1 GΩ
Lead Free
50 mm
Production (Last Updated: 7 months ago)
10 A
60 °C
250 V
30 V
-50 °C
Through Hole
2
8
10
30 ms
Box
300 mW
No
Yes
General Purpose
20 ms
30 ms
Compliant
15 A
PC Pin
DPDT
250 V
30 V
50 g
25.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2666.71
Total Price
₹2666.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2666.71
₹2666.71
10
₹2666.44
₹26664.44
25
₹2532.61
₹63315.26
50
₹2266.02
₹113300.75
100
₹2132.72
₹213271.95
