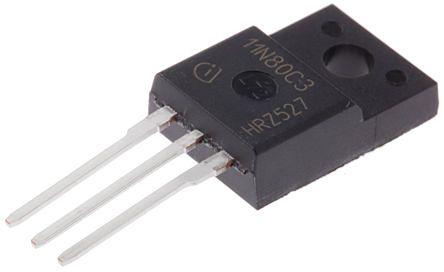

SPA11N80C3XKSA1
Manufacturer
Infineon
Description
Single N-Channel 800V 450 Ohm 64 nC CoolMOS Power Mosfet - TO-220-3
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Halogen Free
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Pins
On-State Resistance
Package Quantity
Packaging
Power Dissipation
Rds On Max
REACH SVHC
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage
Voltage Rating (DC)
Width
Description
TO-220-3
11 A
11 A
11 A
800 V
800 V
Single
7 ns
20 V
Halogen Free
9.83 mm
1.6 nF
Lead Free
10.65 mm
NRND (Last Updated: 4 years ago)
150 °C
41 W
-55 °C
3
450 mΩ
500
Bulk
41 W
450 mΩ
No SVHC
15 ns
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
3 V
72 ns
25 ns
800 V
800 V
4.85 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹260.82
Total Price
₹260.82
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹260.82
₹260.82
10
₹207.12
₹2071.20
25
₹207.12
₹5178.00
50
₹186.45
₹9322.37
100
₹169.00
₹16900.13
500
₹138.47
₹69234.00
1000
₹128.66
₹128659.24
